Ferlux F-1000 Large 14.1 kW Turbo Ventilated Wood Insert

Ferlux Large F-1000 Large Size 14.1 kW Turbo Ventilated Wood Insert.
The Ferlux Large Dimension Large F-1000 Wood Fireplace Insert with Panoramic Glass creates a cosy atmosphere.
Comfortable ventilation with silent turbines up to 312m3.
Efficiency: 85.1% EcoDesign.

Efficiency:85.1 % EcoDesign. Waterproof carbon steel firewood insert.
- Nominal heating capacity: 12kW
– Maximum heating capacity: 14.1kW - Efficiency: 85.1%
- Recommended heating volume: 312m3
- Large fire observation window
- Screen-printed glass window
- Vermiculite interior
- 5-speed touch potentiometer with remote control and safety thermostat
– 60cm logs
- Large combustion chamber and rear or lower outside air intake
- Combustion chamber Refractory vermiculite interior
- Smoke connection: 200mm on
- Clean glass system. An airflow removes particles stuck to the glass, providing a view of the fire.
- Ventilation by 2 220V turbines with switch and safety thermostat
- Silent tangential turbines 120m3/h
- Hot air outlet 4x 120mm diameter
- Primary air inlet can be channelled from the back or bottom of the unit
- Triple combustion system
- Primary and secondary air control.
- Suitable for low-energy homes.

The Wood Fireplace Insert Large F-1000 Large Size of 14.1 kW Ferlux with glass façade Fits perfectly into any interior and creates a warm and cozy atmosphere up to 312m3.
Efficiency: 85.1% EcoDesign provides excellent performance while saving energy in your home.
Its panoramic style with the Clean Glass system that removes particles stuck to the glass with a draught, offering a spectacular view of the wood fire of your Insert.

It perfectly heats large rooms up to 312m3.
Yield: 85.1%
EcoDesign
Ideal for heating a room up to 104m².
Rapid rise in temperature, you won't have to wait long to warm up.
The double combustion improves the stove's efficiency thanks to two air inlets that allow the wood to burn better.
Allows an energy efficiency of heat to 85.1% while reducing emissions of carbon monoxides, pollutants in smoke concentrations and fine particles.

The clean glass system prevents soot from appearing on the glass during combustion so you spend less time cleaning your stove.
Suitable for 60 cm logs.
The Wood Insert Large F-1000 Large Size Ferlux is made of carbon steel with a vermiculite combustion chamber.
The Wood Insert Large F-1000 Large Size Ferlux is equipped with the ECODESIGN 2022 feature, synonymous with high performance and respect for the environment.
The Wood Insert Large F-1000 Large Size Ferlux achieves the thermal comfort that can be used in the main room by natural convection of heated air through wood combustion.
To control combustion, duration and heat input, the Wood Insert Large F-10000 Large Size has a regulator that acts on the air flow and in addition a second regulator that modifies the secondary air flow, with the glass system clean.
To control combustion, duration, and heat input, the device has a handle that acts on the airflow for combustion and a second regulator that changes the airflow of the glass that makes up the clean glass system.

Learn more:
Primary Air: It is located at the bottom of
Our equipment allows you to adjust this air intake, depending on whether you want more or less flame, reducing log consumption to achieve more efficient combustion.

Secondary Air: It is located on the top of the device.
This is preheated air that is introduced into the combustion chamber that promotes glass cleaning, reduces emissions to the environment and increases the performance of the equipment.

Clean Glass: On the inside of the glass, an air curtain prevents the combustion fumes from coming into contact with the glass, which allows the flame to be seen for a long time and better combustion.
We also help reduce emissions and fuel consumption.

Triple Combustion: With triple combustion, it was possible to make the most of the flame produced in the combustion chamber.
It reduces polluting emissions as much as possible.

Printed Glass: The appliances that incorporate it feature a more elegant and sophisticated design, ensuring that the door is not simply a technical element, but also a decorative element, screen-printed crystal.

White Vermiculite: The white color allows an attractive view of the flame.
The appliances that incorporate it have the combustion chamber completely covered with this material, which is resistant to high temperatures and prolonged contact with the flame.
Being a highly refractory material, it guarantees complete combustion, reducing emissions into the atmosphere thanks to the high temperatures that the combustion chamber reaches.

Turbine: In addition to the natural convection heating capacity of all our equipment, we must add the effect of the impulse turbines that some of them have.
Especially suitable if a hot air duct is needed to improve comfort in adjoining rooms. 220V Turbine.

Potentiometer:It allows the turbine air system integrated into the device to be activated or deactivated, providing the user with the setting of the desired amount of air.

Canalization: A system that allows hot air to be brought through ducts to other rooms by means of very quiet turbines.
This ensures greater comfort and lower fuel consumption.

Waterproof Equipment: Sealed equipment does not consume the air in the room in which it is installed.
It does not saturate the atmosphere and does not reduce the amount of oxygen in this room, allowing for greater comfort.

Outdoor Air: Equipment that has an outdoor air inlet allows the chimney to work in a more efficient way, as cold air with a higher concentration of oxygen and nitrogen is used for combustion.
This reduces the consumption of firewood.

Technical characteristics :
EcoDesign
Wood insert Large Dimension Ferlux
Rated power: 12 KW
Energy efficiency: 85.1%
Maximum power: 14.1 KW
Black Finish Frame: 40mm
Triple combustion system
Easy regulation of primary air
CO emissions (13%): 0.05%
CO particles: 16.7mg/Nm3
OGC: 19.8mg/Nm3
NDx: 92.2mg/Nm3
Flue Temperature: 226.4°C
Average Circulation: 10-14 Pa
Consumption: 3.1kg/h
Log size: 60cm
Colour: BLACK
Carbon steel
Firebrick - Vermiculite
Clean glass system
Heating volume: 312m3

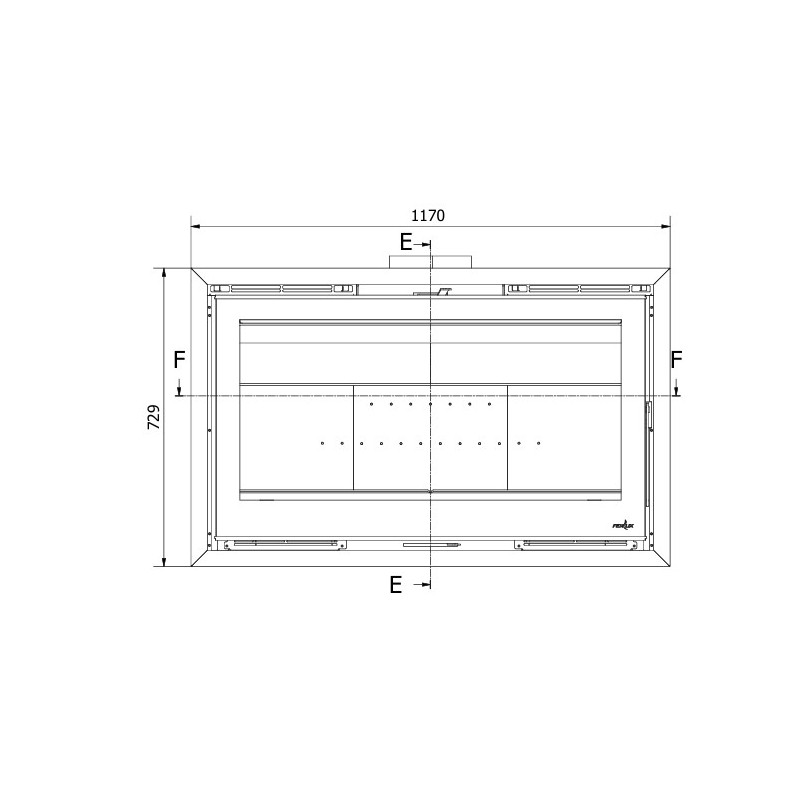

Height: 654mm
Width: 1070mm
Depth: 490mm
Interior Depth: 884x349x296mm
Front glass screen printed: 946x592x4mm
Ashtray with removable grid
Easy regulation of primary air
Loading: Front

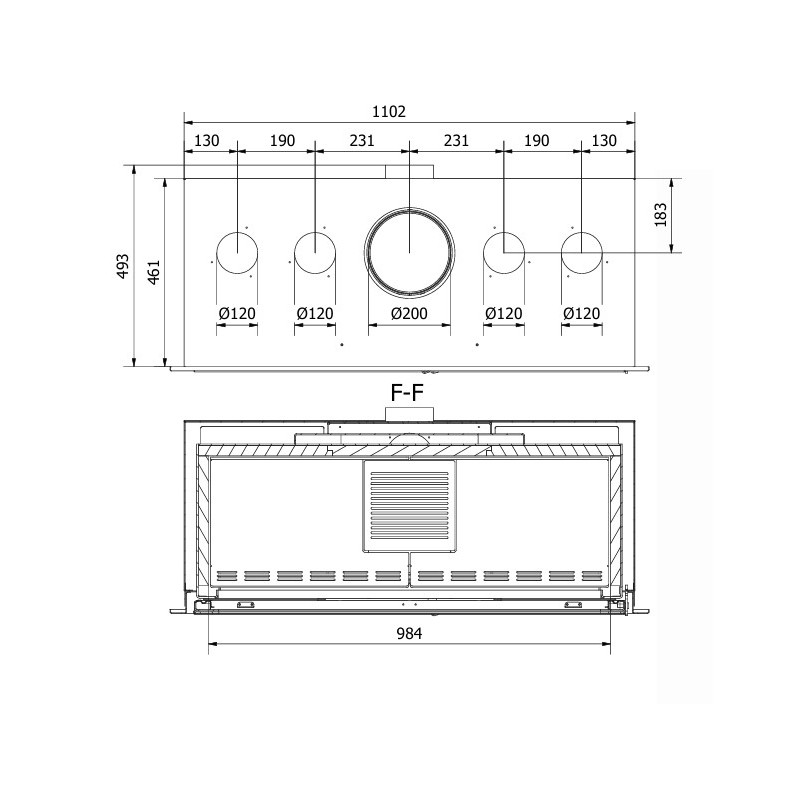

Flue gas outlet diameter: 200 mm
Hot air outlet 4 x 120mm diameter
Air Inlet: 120mm
220V Turbine
Primary air inlet can be channeled from the back or bottom of the unit
Flue gas connection: Top
Power supply 220-230v
Frequency 50-60Hz
Average power consumption: 66W.
Weight: 153 kg
Standards: CE, EN 13229
Green Flame / Ecodesign 2022 / Eligible for tax credit.
Ferkux warranty: 5 years.
