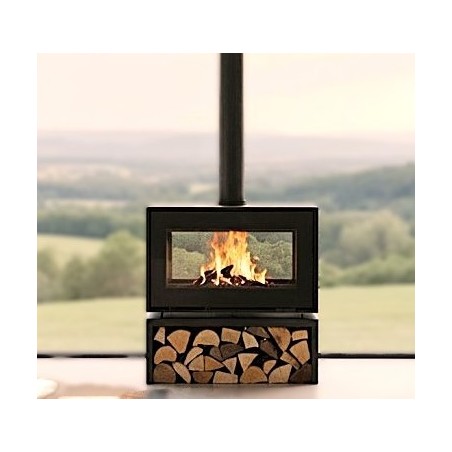

Double-sided wood-burning stove A.Caminetti Tunnel 90

Double-sided wood-burning stove A.Caminetti Tunnel 90.
The Double-Sided Fireplace Tunnel Wood Insert A.Caminetti for an efficient heating comfort of 12kW and its glass door. Logs up to 59 cm.

The Tunnel Wood Double Sided Insert is designed for efficient operation with primary and secondary air settings to optimize combustion.
Maintenance is made easy by its clean ceramic glass system of quality resistant up to 800°C which ensures a double vision of the flames.

Technical characteristics:
Power: 7-12 kW,
75% efficiency,
Consumption: 2 - 3.5 Kg/h,
Smoke evacuation diameter: 150 mm,
100mm air intake,
Primary and secondary air supply adjustment,
Clean glass system,
5-year warranty,
Ecodesign certified, Green Flame.

Energy performance
With a power output of 7 to 12 kW and an efficiency of 80%, this double-sided wood-fired glazed insert is capable of heating a large space.
Its consumption of 2 to 3.5 kg/h reduces heating costs while maintaining efficiency.
The insert is A+ rated in energy efficiency and meets the highest performance.

Materials and construction.
The insert is made from a 3mm thick steel, ensuring strength and durability,
Vermiculite for the combustion chamber optimizes heat resistance and contributes to the durability of the product,
The transparent ceramic glass is able to withstand temperatures up to 800 °C, allows for increased safety while allowing a wide view of the flames,
The fireplace insert with drain allows a more intense and natural flame to illuminate and warm your interior,
The specially closed door further enhances the rigidity of the assembly, while providing easy access for loading logs through the glass door.

Instructions for use.
The Wood Insert fireplace is designed for natural convection, allowing heat to be distributed efficiently in the room,
Logs with a maximum length of 59 cm are recommended for optimal use,
A minimum distance of 5 cm from combustible materials on the sides and rear must be observed.

Advantages of wood-fired combustion.
Wood heating is much more environmentally friendly than fossil fuels,
Wood is considered carbon neutral, meaning that when it burns, it does not add carbon dioxide to the air.

Technical Specifications:
Model: Tunnel 90,
Rated power: 7-12 kW,
Energy efficiency class: A+,
Efficiency. >7801%,
Dimensions (H x W x D): 884 x 935 x 416 mm,
Average CO content: 1250 mg/m³,
Fine dust: 22 mg/m³,
Flue gas temperature: 242 °C,
Flue gas mass flow: 10 g/s,
Hot air emissions: 2 x 100mm,
Minimum discharge pressure: 12 Pa,
Weight: 1250 kg,
Fume Pipe Outlet Diameter: 150mm (Top),
Air intake connection: 150 mm,
Primary/Secondary Air,
Clean glass system, ceramic glass resistance 800°C,
Fan: option on request,
Combustion chamber material: vermiculite, black interior option as standard,
Metal frame: Yes,
Minimum distance to combustible materials: 5 cm on the side, 5 cm on the back,
Efficiency: 80%,
Fuel: wood / briquette,
Consumption: 2- 3.5 KG/H,
Log length: max.59 cm,
Closing/double-sided glass door,
5-year warranty.
Ecodesign certified, Green Flame.
