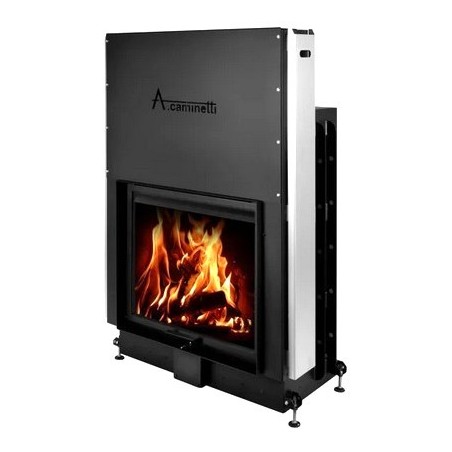

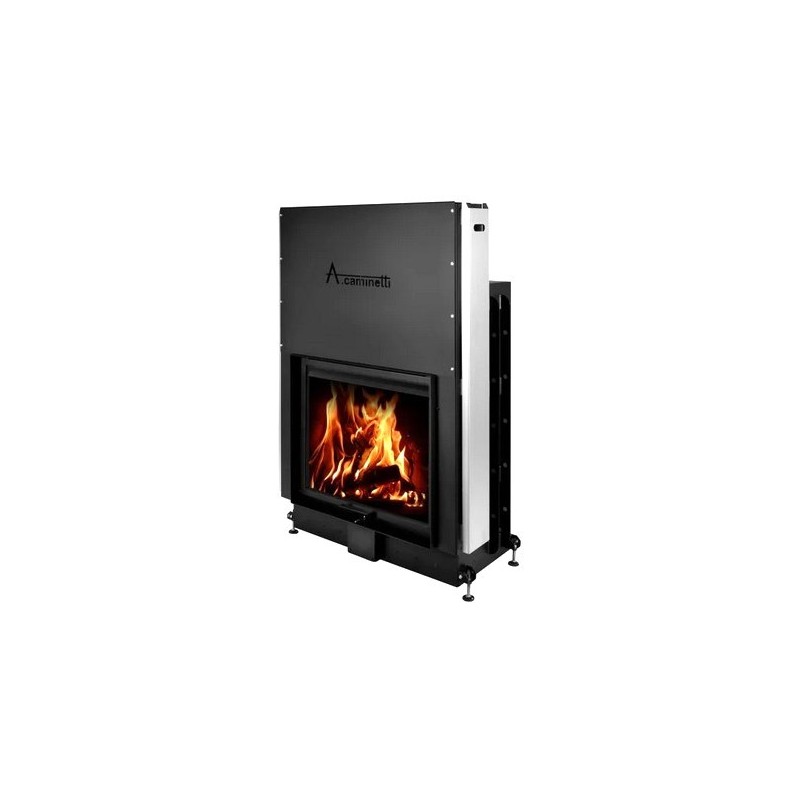

Flat Wood Fireplace Insert 75x50 A.Caminetti

Flat Wood Fireplace Insert 75x50 A.Caminetti.
The Flat Fireplace 75x50 wood insert A.Caminetti for efficient heating comfort and its ceramic lift-up glass.
Wide view of the flames. Logs up to 30 cm.

The Flat 75x50 Wood Fireplace Insert is designed for efficient operation with primary and secondary air settings to optimize combustion.
Maintenance is made easy by its clean glass system made of quality ceramic, which ensures a wide view of the flames.

Technical characteristics:
Power: 7-14 kW,
80% efficiency,
Consumption: 3.5 Kg/h,
Smoke evacuation diameter: 200 mm,
Primary and secondary air supply adjustment,
Clean glass system,
5-year warranty,
Ecodesign certified, Green Flame.

Energy performance:
With a power output of 7-14 kW and an efficiency of 80%, this wood insert is capable of heating a large space.
Its consumption of 3.5 kg/h reduces heating costs while maintaining efficiency.
The insert is A+ rated in energy efficiency and meets the highest performance.

Materials and construction:
Vermiculite for the combustion chamber optimizes heat resistance and contributes to the durability of the product.
The transparent ceramic glass is able to withstand temperatures up to 800 °C, allows for increased safety while allowing a wide view of the flames.
The self-closing, lift-up door allows for reliable and safe operation.

Instructions for use:
The wood-burning fireplace is designed for natural convection, allowing heat to be distributed efficiently throughout the room.
Logs with a maximum length of 30 cm are recommended for optimal use.
A minimum distance of 5 cm from combustible materials on the sides and rear must be observed.

Advantages of wood-fired combustion:
Wood heating is much more environmentally friendly than fossil fuels.
Wood is considered carbon neutral, meaning that when it burns, it does not add carbon dioxide to the air.

Technical Specifications:
Model: Flat 75x50,
Rated power: 7-14 kW,
Energy efficiency class: A+,
Efficiency. > 80%,
Dimensions (H x W x D): 1490 x 1112x 605 mm,
Average CO content: 1250 mg/m³,
Fine dust: 16 mg/m³,
Flue gas temperature: 186 °C,
Mass flow rate of the flue gas: 9 g/s,
Hot air emissions: 2 x 100mm,
Minimum discharge pressure: 12 Pa,
Weight: 249 kg,
Flue Pipe Outlet Diameter: 200mm (Top),
Primary/Secondary Air,
Clean glass system,
Fan: option on request,
Combustion chamber material: vermiculite,
Metal frame: Yes,
Minimum distance to combustible materials: 5 cm on the side, 5 cm on the back,
Efficiency: 80%,
Fuel: wood / briquette,
Consumption: 3.5 KG/H,
Log length: max.30 cm,
Glass door with automatic lift-up closing,
5-year warranty.
Ecodesign certified, Flamme Verte.

A.caminetti.
Specialising in stoves, fireplaces and inserts, the A.Caminetti brand offers a wide range of products for the thermal comfort of its customers.

Fireplace inserts and stoves. You always have a choice, do the best! High efficiency over 80%.
Environmentally friendly product.
For more than 27 years, A. Caminetti has been founded as a small Italian family business and has now grown into a large, contemporary company that responds to customer demands.
A.Caminetti adapts to all standards, offers ease of reliability and finesse in design."
