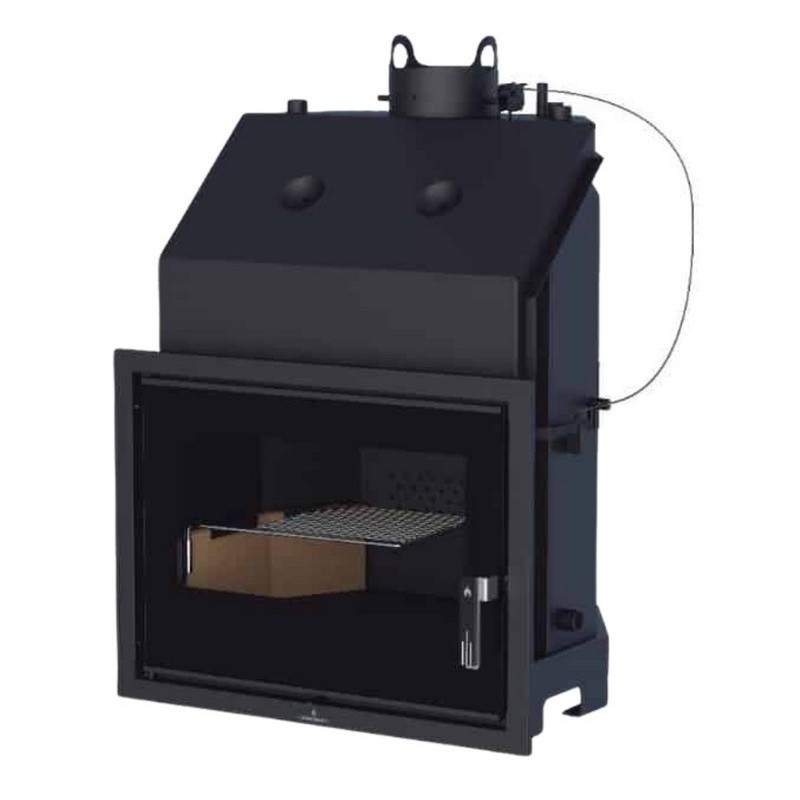

Fireplace Boiler Insert 70 Bronpi

Fireplace Boiler Insert 70 Bronpi.
The Tecno Hydro Fireplace Boiler Boiler Insert Bronpi 21kW, has an efficiency of 84% and 60 cm logs to heat up to 475m3.

The Tecno-Hydro Bronpi70 Wood Insert Boiler is a central heating system made of cast iron and steel that allows you to heat your home with a high level of quality to enjoy the extraordinary feeling of warmth in an economical and ecological way.
Its 84% efficiency and 21 kW power offer optimal comfort.
The Tecno-Hydro 70 Insert must always work connected to a hydraulic circuit of radiators or similar installation, as they are specially designed to heat the room by means of these elements.
However, the Tecno-Hydro 70 Insert is also a source of heat by natural convection of the air in the room.
The hydraulic circuit consists of a 70 buffer tank whose heat source comes from the combustion of wood in the fireplace as well as a water inlet and outlet. The maximum pressure is 1.5 bar.
- Indoor vermiculite hearth,
- Cast iron door,
- Cast iron fireplace grate,
- Wood consumption: 4.9 kg/h,
- Measurements of the furnace's useful inlet: 642 x 315 x 450 mm,
- Tank capacity: 70 liters,
- EcoDesign certified,
- 2-year parts warranty and 5-year heating element.

The Tecno-Hydro 70 Insert is a heating system with a power of 7 to 19 kW and a power given to water from 5 to 14 kW.
Its 84% efficiency ensures an excellent wood log consumption ratio of approximately 4.9 kg/h.
The Tecno-Hydro 70L Insert is suitable for an area with underfloor heating of up to 130 m² and can supply up to 100 radiator elements.

Technical Specifications: Tecno-Hydro 70.
Clean Glass System,
Overpressure Safety System,
Max power: 21 kw,
Heating power: 19-7kw,
Power Transferred to Water (kW): 14-5kw,
Yield (%): 84%,
Consumption(kg/h): 4.9kg/h,
Heated volume (m3): 475m3,
Tank capacity (l): 70 L,
Interior vermiculite,
Made of cast iron and steel,
Weight (kg): 175kg,
Smoke Outlet Diameter (mm): 200mm,
Dimensions: (HxWxD) 1086x846x606 cm,
Measurements of the useful inlet of the fireplace: 642x315x450mm,
Working pressure (bar): 1.5bar,
Maximum log size: 60cm,
Underfloor heating (m2):130,
Number of radiator elements: 100,
EcoDesign 2022,
Flamme Verte 7 stars,
Heating element warranty: 5 years,

The Tecno-Hydro 70 Insert includes a pressure relief safety system with the possibility of installing a 3 bar valve.
The working pressure is 1.5 bar, and the water return temperature must be above 50°C to ensure optimal efficiency.

Option: Compatible accessories not included: VAL-03; VAL-05,
Several choices and versions available on request.

High quality in-function and steel fireplace insert.
The vermiculite interior guarantees a longer life of the combustion chamber over time and increases the thermal capacity of the fireplace.
All Bronpi brand fireplaces are manufactured in the Spanish factory in Còrdoba, which has been active since 1985 in the production of fireplaces, stoves, ovens and thermo-fireplaces.
Bronpi is synonymous with technology and respect for the environment, in fact, in the last 30 years, the company has obtained and applied the following certifications to all its products.

- Flamme Verte, a French certification that guarantees quality, efficiency and high performance of products,
- EN-13229, European standard for inserts (including open inserts) using solid fuels,
- I.Bim SchV, a German standard regulating emissions and emissions in line with climate protection targets,
- EcoDesign, ecological design requirements for biomass boilers and heating appliances, in force since 1 January 2022,
All products of the Bronpi brand are guaranteed for 5 years by the manufacturer.
